Description

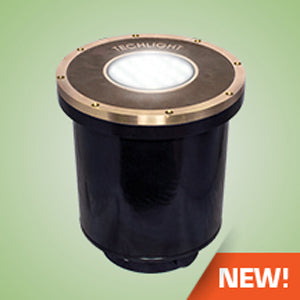

Techlight TDBX LED Direct Burial Inground Light
Application
The TDBX line of LED Lanscape Burial Lights are the most versatile LED fixtures on the market today. Various beam spreads and color temperatures allow for a customized finish to any property. The high end commercial grade system was designed for 120V-277V operation commercial applcations.
Construction
The rough-in housing is made of black 25% glass filled polyester composite that will not flake, peel or corrode. The LED light source is housed within an 88% copper bronze alloy heat sink module for maximum heat dissipation. Internal cabling features anti-siphon wiring to prevent water intrusion as well as IP68 quick connects for quick change out and ease of installation. Silicone O-rings work with the CNC precision machined components to insure proper sealing. All fasteners provided are stainless steel. Trim plate made of 88% copper bronze alloy.
Optical System
A molded polycarbonate 75mm compact reflector is optimized for use with the LED light source allowing the fixture to be compact while using high efficiency COB LEDs. The reflector smooths out and removes any unwanted color-over-angle artifacts from the beam. A 15mm low-iron tempered glass lens protects the light source.
Electrical System
Fixture operates at 120V-277V input. A 40 watt LED source provides approximately 4200 (NW) Lumens of 90 CRI light. 10kV internal surge protection provided standard.
Mounting
Fixtures are designed to be in-ground burial lights and should be installed according to the installation instructions made available by Techlight. Proper drainage and substrate must be provided around the fixture. Two 3/4" and two 1/2" conduit entries are supplied on the underside of the housing. 3/4" conduit side entries availabe upon request. Conrete pour kits available (see Accessories). Rough-in housing may be pre-shipped1 at customers expense.
Listings
ETL suitable for wet locations. IP68 rated to 3 meters. Meets US and Canadian safety standards. -40°C to 40°C ambient operation. RoHS Compliant.
