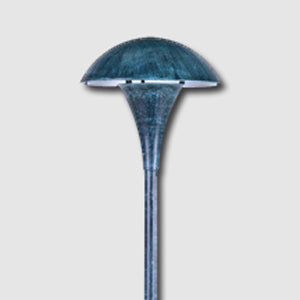

Techlight TLLMAL-LED LED Aluminum Path Light 9 Inch Mushroom Top
Construction
The integral die cast zinc heat sink has 12 heat dissipating fins to maintain a cool operating LED for maximum life. The fins are independently supported to allow for unobstructed airflow. A chromate pretreatment is applied prior to the finishing process to ensure lasting durability. It remains unseen housed within the tasteful shroud.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied. Standard colors available: Black, Bronze, White, OD Green, Verde. Custom colors available upon request.
Optical System
A high performance optical assembly in conjunction with the LED light source reflects the light off of the dome reflector back down and outwards for 360° illumination while keeping the LED light source completely shielded from view in all directions to exceed full cut-off requirements. This keeps light pollution to an absolute minimum. The convex lens is configured to ensure water runs off and clear of the lens.
Electrical System
A 5 watt single source LED Board provides approximately 250 Lumens of Cool White light, 150 Lumens of Warm White, or 200 Lumens of Neutral White. We also offer a variety of gels lens filters to help meet your specific lighting needs. Consult the factory for availability. The integral driver is mounted securely within the path light stem. Transformer is required for 12V to 24V AC operation.
Mounting
The large version comes standard with an 18" stem and the small version a 12" stem. The stem features a 1/2" NPT threaded end for stake mounting or mounting to a junction box.
