Techlight TOTE-EM-ROUND Modular Pole System - Round

TECHLIGHTSKU: TOTE-EM-ROUND

Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Techlight USA

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Techlight TOTE-EM-ROUND Modular Pole System - Round

Pole

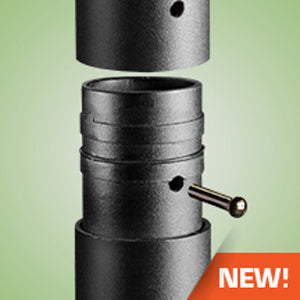

The Tote-Em Series are Multi-Piece Poles designed for easy installation, convenient storage, and simple handling. The pole shaft is fabricated from hot rolled carbon steel having a minimum yield of 55,000 PSI and conforms to ASTM A500 grade C requirements. The shaft construction is formed steel welded longitudinally. The multiple pole pieces interlock via a splice plug welded to the top pole section and secured into the lower section using set screws. The hand hole is located 1 6" above the pole base. A ground lug is provided standard.

Anchor Base

The anchor base is fabricated from a structural quality hot rolled carbon steel plate that has a minimum yield strength of 36,000 PSI. The anchor base telescopes the pole shaft and has a circumferential weld on the top and bottom.

Base Cover

A full base cover is provided which encapsulates the base plate and anchor bolts to provide a clean transition from pier to pole.

Finish

A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.

Product Files

Click for Installation Instructions

Click for RS2P 15 4 11 Spec

Click for RS3P 20 4 11 Spec

Click for RS3P 24 4 11 Spec

Click for RS4P 27 4 11 Spec

Click for RS4P 30 4 11 Spec

Click for Product Flyer

Click for Wind Zone Map
