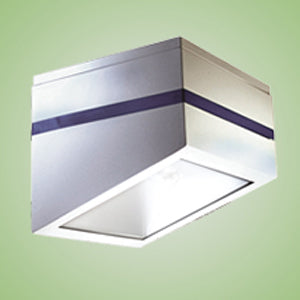

Techlight WBV Titan Series Designer Shoebox
Application
The Titan is designed to produce a far reaching Forward Throw light pattern and is well suited for perimeter lighting. Limited back light and spillage makes this fixture efficient and precise. The aesthetically appealing design allows for it to blend into a wide variety of architectural settings and designs.
Construction
Constructed from architecturally shaped die cast aluminum housing. The door frame features a tool-less latch with stainless steel hardware. A silicone gasket provides a weather tight seal. ETL listed for wet locations.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
The fixture uses high efficiency reflectors and premium optical components. It is available in a forward throw beam pattern. The vertical lamp position offers exceptional optical control. The fixture was designed retail property applications.
Electrical System
A 4KV pulse rated mogul base socket is provided standard. Fixtures are available from 400W-1000W Metal Halide and Pulse-Start Metal Halide. Each fixture is available with either a multi-tap or 480V CWA magnetic ballast that is pre-wired for convenience.
Mounting
Standard mounting options include a 12" Straight Arm with internal bolt guides for square pole mounting provided standard. Additional mounting options are available.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
