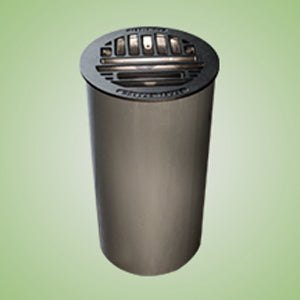

Techlight WL HID/Incandescent Well Light
Construction
The die cast aluminum, brass, or zinc housings suspend from the covering grill by two steel spring clips. The grill is secured to the well sleeve with two self-tapping screws.
Optical System
A high-impact tempered glass lens is sealed to the housing using silicone for a watertight seal. The aluminum, brass, or composite safety grill rotates 360° for glare control.
Electrical System
Each fixture is pre-wired with either 15 or 30 of 16/3 cable and is internally grounded. 70W thru 175W mercury vapor or metal halide light sources are available. Fixtures can be ordered less a ballast and lamp for incandescent operation.
Mounting
Fixtures are designed to be in-ground well lights and should be installed according to the installation instructions made available by Techlight. Proper drainage and substrate must be provided for water to flow freely through the well sleeve.
