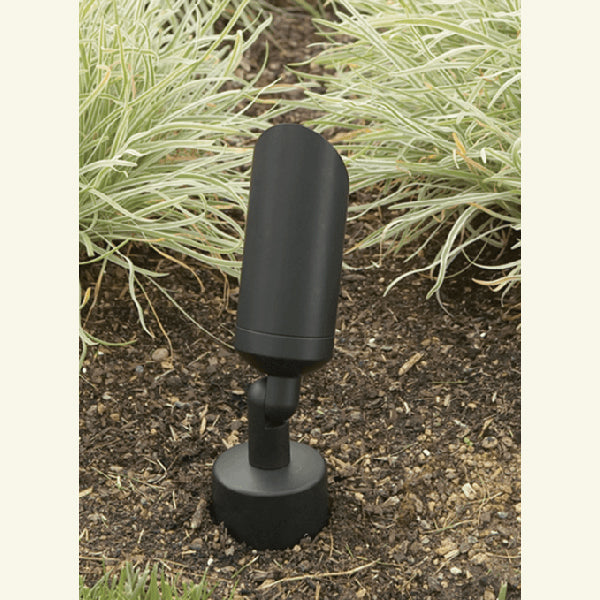

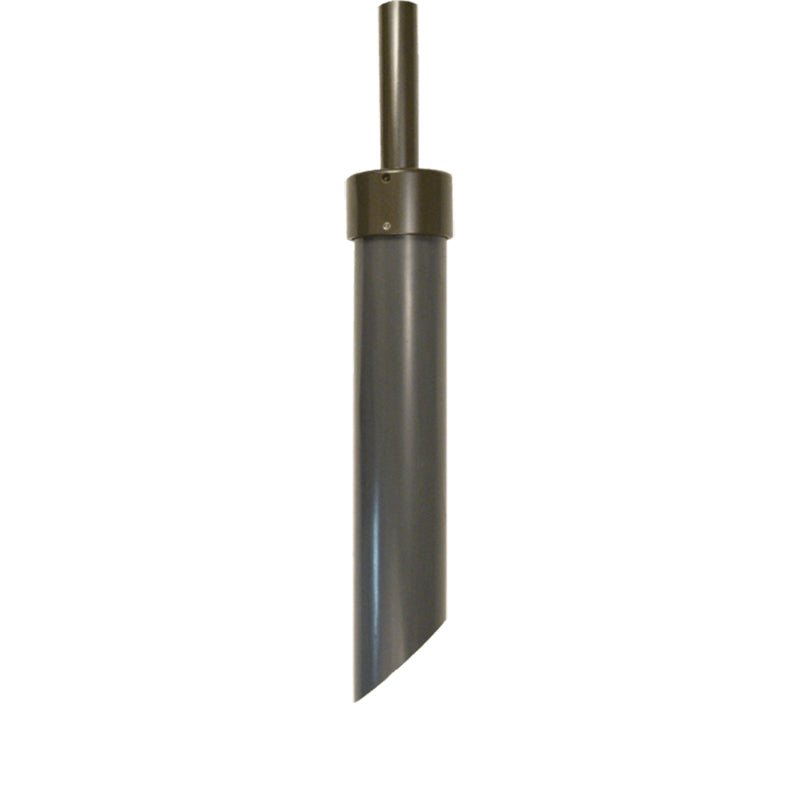

PVC stake and junction housings with precision machined caps for ground mounted landscape up lighting applications. Can be utilized with low-voltage & line-voltage, flood & accent products from Vision3 Lighting.
Housing:
Stake and Junction housings made from corrosion resistant, thermoplastic PVC. Junction housing is supplied with two integral 1/2" slip fittings allowing for conduit connection, leak proof cable entry, and feed through wiring. (Conduit and cable not included).
Cap:
Cap machined from 6061-T6 aluminum, C36000 brass, or 304 stainless steel. Cap contains a 1/2" NPS threaded mounting hole, and is locked to housing with three 18-8 stainless steel set screws.
Stem:
Stems are machined from 6061-T6 aluminum, C36000 brass, or 304 stainless steel; and are threaded 1/2" NPS on both ends. Stem option available in lengths of 3", 6", 12", 18", 24", 30", 36", 42", and 48".
Seals:
O-ring groove on cap allows for use of an O-ring to prevent leaking between cap and fixture knuckle. (Note: All Vision3 fixtures come with a high temperature, black Viton O-ring on the knuckle for this purpose). On styles S3 and S4, a silicone O-ring between the cap and housing ensures a watertight junction housing.
Finish:
TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal finishes: Natural, Polished, and Brushed.
Electrical:
Style S0, SM, S1, S2, and S4 options: no power supply included.
Style S3 transformer options: includes a 75VA, 11.6VAC output, electronic transformer in 120, 230, or 277VAC input.
Style S5 LED driver options: includes a 20W constant current LED driver (350mA or 500mA) with various voltage input (90-305VAC or 120VAC) and dimming (0-10V or phase) options. Driver functions include over voltage, short-circuit, and no-load protection.
Certification:
CSA tested & certified to US and Canadian safety standards for wet location landscape use per UL 1838 (all except 230V model).
Click for MO1 Specification Sheets
Click for MO1-S1 (Fixed Stake) Installation Instructions
Click for MO1-S2 (Adjustable Stake) Installation Instructions
Click for MO1-S3 (Junction Stake w/ Transformer) Installation Instructions
Click for MO1-S4 (Junction Stake) Installation Instructions
Click for MO1-S5 (Junction Stake w/ Driver) Installation Instructions
