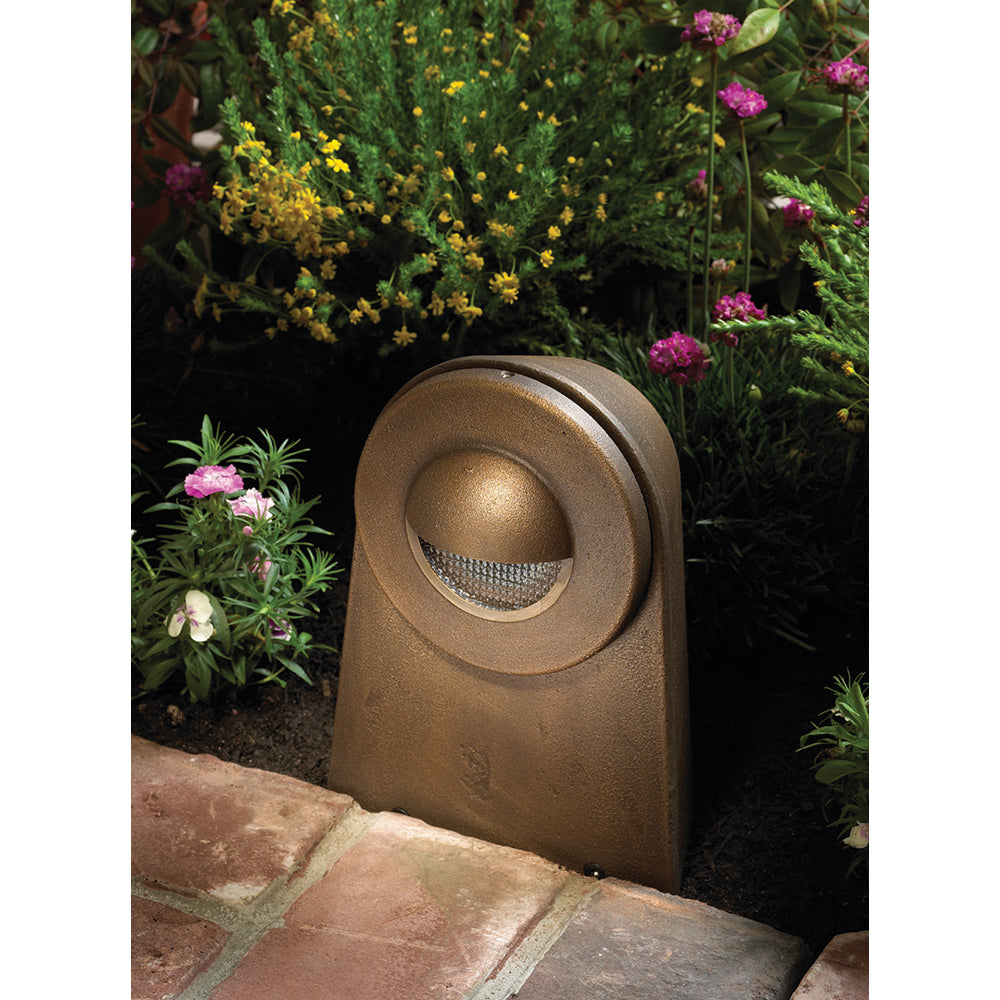

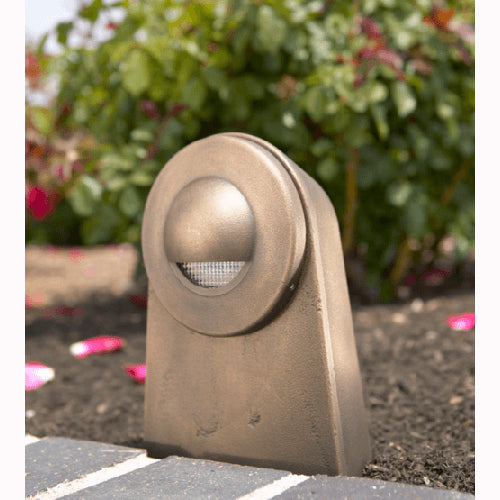

Vision3 PA7 MR16 Bollard Path Light

Name: Vision3 PA7 MR16 Bollard Path Light
Brand: Vision3 Lighting
SKU: PA7
Availability: InStock

Vision3 LightingSKU: PA7

Price:

$0.00 USD

Quantity:

Share this product

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Vision3 PA7 MR16 Bollard Path Light

Precision cast lighting fixture for MR16 halogen lamps or integral LED lamp module with driver. Can be used for step lighting, path lighting, or area lighting applications. Mountings for planter beds and concrete / stone installations available.

Features

Cast faceplate and cover with hardware concealed on the sides provides a clean, architectural appearance.
Large 2 1/2" diameter spread lens provides efficient, even distribution of light. In many installations, lower wattage lamps can be utilized for reduced energy use.
Cover rotates so that glare can be better controlled on sloped walkways or steps and for final leveling alignment.
LED modules are field replaceable and feature replaceable lenses.
LED drivers utilize dynamic transformer recognition to simplify installation and patented LEDSense® thermal management to keep LED running at the optimum temperature.

Specifications

Body:

Thick walled cast C84400 bronze housing attaches to mount base using black oxide coated 18-8 stainless steel hardware.

Mount Base:

Machined C36000 brass mount base comes in two styles: Surface Mount and Stake Mount.

Faceplate:

Cast C84400 bronze faceplate is pressed on to a machined, black anodized, 6061-T6 aluminum cap, which is attached to the lamp holder (see below). Seal between cap and faceplate is a high temperature silicone O-ring. A 1/8" thick, tempered, clear lens, is secured to the faceplate with a high temperature, UV curing, silicone adhesive for a water tight seal. The faceplate accepts two internal lens accessories, held in place by a stainless steel clip.

Cutoff Cover:

Cast C84400 bronze cover comes in two cutoffs. A 1/8" thick, ø2 1/2" spread lens is secured to the cover and allows maximum light output and distribution. The cover is mounted to the faceplate using three 18-8 stainless steel set screws. The cover can be mounted on the faceplate and rotated to align, as desired.

Lamp Holder:

The machined 6061-T6 aluminum, black anodized lamp holder contains the socket and lamp, and attaches to the faceplate cap using one 18-8 stainless steel set screw.

Finish:

TGIC thermo set polyester powder coat paint available in 14 standard colors. Available in two additional metal finishes: Natural and Aged.

Socket:

GY-6.35 porcelain socket with 600V, 250°C, PTFE coated 18 ga leads.

Lamps:

MR16 Halogen: 12V bi-pin up to 50W (See Certification heading).

Integral LED: 12-24V AC/DC 6W (400lm) or 12V AC/ DC 10W (700lm) LED options include integral driver with High/Low switch for 35W/20W (6W) or 50W/35W (10W) halogen equivalent outputs. LED Modules are field replaceable and feature replaceable lenses, an L70 > 60,000 hrs., dynamic transformer recognition, phase dimming (see Transformer and Dimmer Compatibility List), and patented LEDSense® thermal management.

Retrofit MR16 LED: 12V 7.5W (600lm) bi-pin retrofit Soraa™ MR16 LED lamp with specially engineered heat sink mount to ensure proper heat transfer to body.

Certification:

CSA tested & certified to US and Canadian safety standards for the following applications:
Wet location landscape use (UL1838):
PA7B - 50W Max. MR16 Halogen lamp.
Caution! - Higher wattage lamps may be unacceptable or harmful in certain applications. Consult the surface temperature table on the specification sheet before choosing a lamp suitable for your application. LED options can be used in all models and applications.
