Vision3 WM6 MR16 Dual Wall Mount


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Vision 3 Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

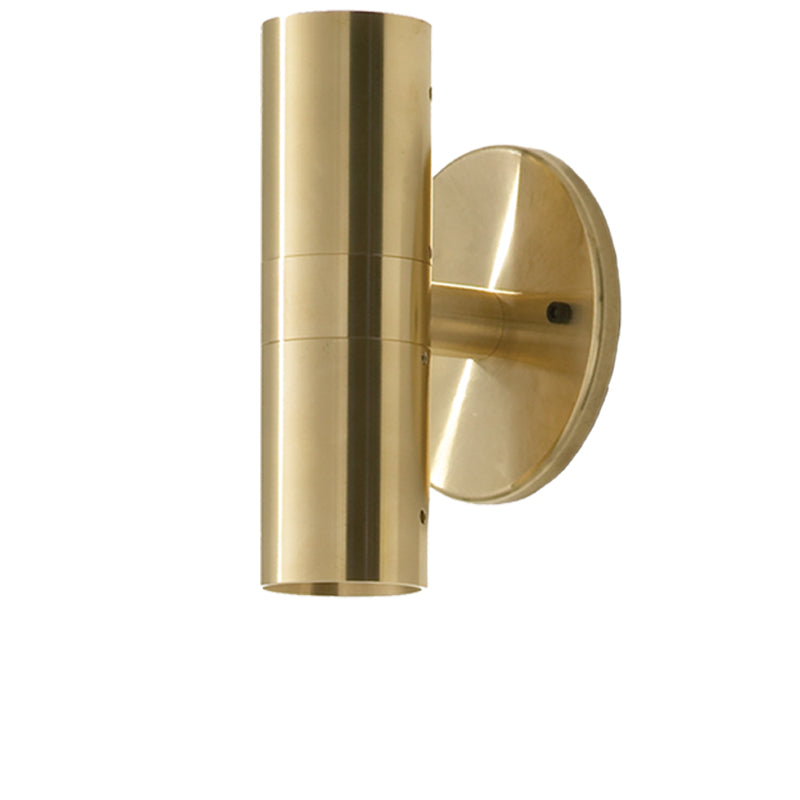

Vision3 WM6 MR16 Dual Wall Mount

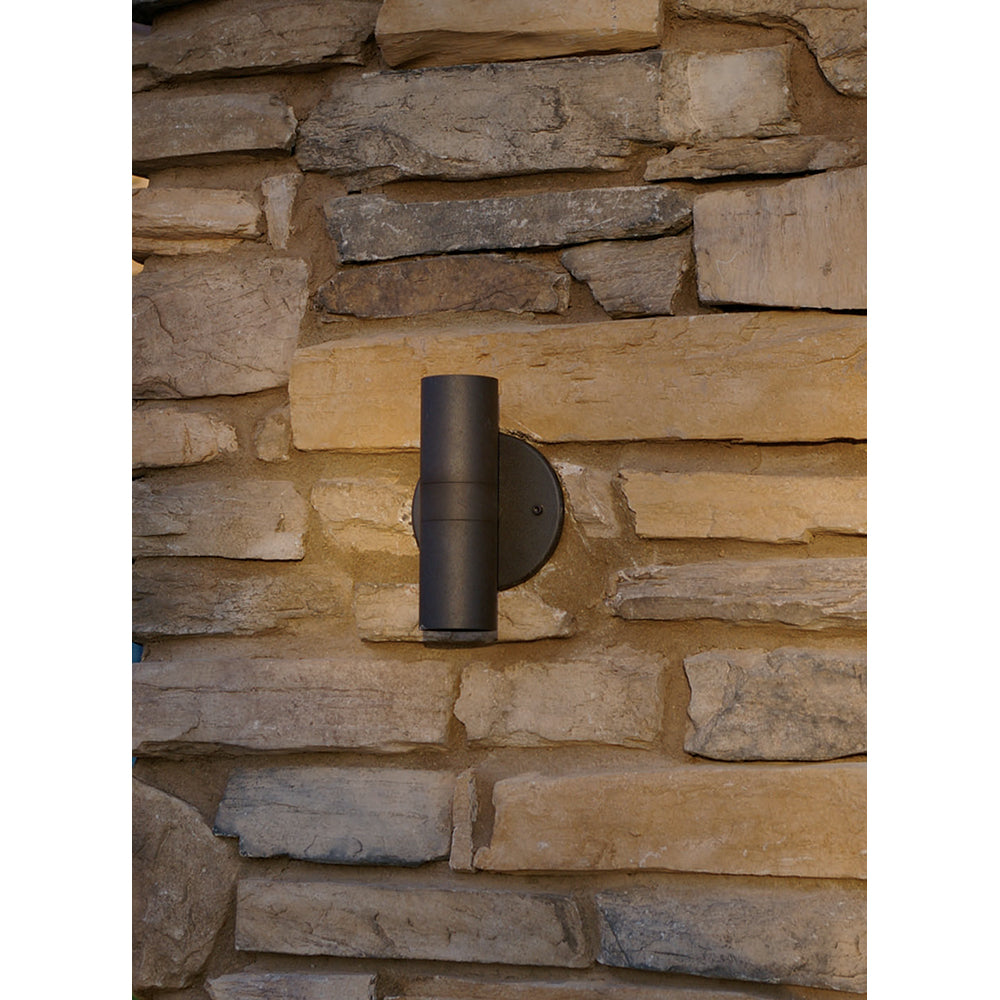

Precision machined lighting fixture for dual MR16 halogen lamps or dual integral LED lamp modules and drivers. Can be used for wall mounted lighting applications.

Features

  • Body and cap available in round and square (aluminum only) shapes.
  • Thick walled cap and optimized high temperature silicone O-ring placement prevents leaking.
  • ADA compliant with remote transformer.
  • Thick walled cap allows for more threads and larger set screw to prevent stripping.
  • LED modules are field replaceable and feature replaceable lenses.
  • LED drivers utilize dynamic transformer recognition to simplify installation and patented LEDSense® thermal management to keep LED running at the optimum temperature.

Specifications

Material:

Available in machined 6061-T6 aluminum, C36000 brass, or 304 stainless steel.

Cap:

Machined caps lock in place with 18-8 stainless steel set screws, and are sealed to the body with a high temperature silicone O-ring. Round C2 & C4 caps have drain holes for water drainage from top of lens. Square caps feature removable and field interchangeable cutoffs with flowthrough design for 360° drainage with no light leak. Flush Lens cap styles incorporate a stepped lens to reduce the collection of water and debris on the lens.

Mount Canopy:

Available with the following mount options: MO3 (Machined Round Canopy), MO15 (Machined Square Canopy), and MO12 (Surface Mount Powered Canopy). Stem is permanently attached to the mount canopy to prevent loosening. MO3 & MO15 mount options come mounted to a steel universal mounting ring for ease of mounting and adjustment on an industry standard round junction box. See mount specification sheets for more information. (Mount canopy must be mounted to an appropriate wall or junction box, in such a manner that is capable of holding the weight of the fixture. Junction box and hardware not included).

Finish:

TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal finishes: Natural, Polished, and Brushed.

Socket:

Two GY-6.35 porcelain sockets with 600V, 250°C, PTFE coated 18 ga leads.

Lens:

Tempered, clear lenses, secured to caps with a high temperature, UV curing, silicone adhesive.

Lamps:

MR16 Halogen: Two 12V bi-pin lamps up to 50W each (maximum allowable combined wattage depends on model and application. See Certification heading).

Integral LED: Two 12-24V AC/DC 6W (400lm) or two 12V AC/DC 10W (700lm) LED modules, each includes integral driver with High/Low switch for 35W/20W (6W) or 50W/35W (10W) halogen equivalent outputs. LED Modules are field replaceable and feature replaceable lenses, an L70 > 60,000 hrs., dynamic transformer recognition, phase dimming (see Transformer and Dimmer Compatibility List), and patented LEDSense® thermal management.

Retrofit MR16 LED: Two 12V 7.5W (600lm) bipin retrofit Soraa™ MR16 LED lamps with specially engineered heat sink mounts to ensure proper heat transfer to body. Note: Retrofit LED will overheat without supplied heat sink mount.

Certification:

CSA tested & certified to US and Canadian safety standards for wet location wall mount use (UL1598):
MO12 Mount Options:
WM6A (w/o transformer) - 87W Max. *
WM6A (w/ transformer) - 55W Max. *
WM6B - 40W Max. *
WM6S - not available.
MO3 and MO15 Mount Options:
WM6A (remote transformer) - 55W Max. *
WM6A (transformer in j-box) - 40W Max. *
WM6B - 40W Max.*
WM6S - 40W Max. *
LED options can be used in all models and applications.

*-maximum MR16 Halogen wattage total for both lamps.

Available Photometry Images

Click for Photometry Image #1

Click for Photometry Image #2

Click for Photometry Image #3

Product Files

Click for WM6 Specification Sheets

Click for WM6 Installation Instructions

Click for 6W LED Technical Data Sheets

Click for 7.5W LED Technical Data Sheets

Click for 7.5W LED Dimmer Compatibility

Click for 6W LED Dimmer Compatibility

Click for 10W LED Technical Data Sheets

Click for 10W LED Dimmer Compatibility
