Description

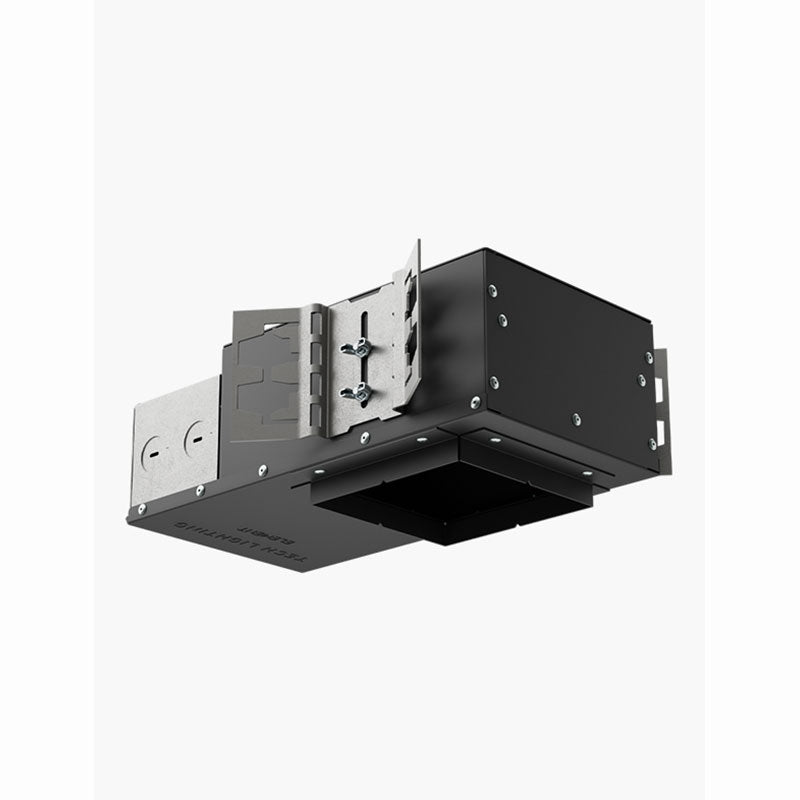

Visual Comfort Element 4" LED PRO
Element LED is an Ideal when a smaller aperture is preferred for the most minimal aesthetic while still offering great output and functionality.
Product Options
Please see description tabs to find more information on each of the following options
Housing Models
- Adjustable Downlight
- Fixed Downlight
- Wall Wash
Trim Options
- Round, Square
- Flanged, Flangeless, Flangeless Wood Ceiling
- White, Black, Antique Bronze, Satin Nickel
Color Temperature
- Static White
- Warm Dim
- Tunable White
Lens Options
- No Lens
- Lensed
- Shower
Specifications
- Delivered Lumens: 464 - 3200
- Binning: 1-Step, 2-Step
- Beam Spread: 18° - 95°, Wall Wash
- Housings: IC, Non-IC, Chicago Plenum, Emergency
- Dimming: Phase/Triac, 0-10V, DALI
- Ratings/Certification: T24, Wet, IC Spray Foam
Adjustable Downlight
Element 4" LED PRO Adjustable Downlight
Click for Adjustable Downlight Spec Sheet
The Element 4" Pro Series Adjustable downlight features full adjustability with lockable, tool-free hot aiming, including patented high/low lamp positioning. Engineered with a precision diffuser and Solite soft focus lens that eliminates hot spots, direct visibility into the housing, and delivers a clean aperture and ceiling aesthetic. Complementing the Element 4" Pro Series Fixed downlight, the Adjustable is offered in a variety of options, including output, beam spreads and the choice of Static White, Warm Dim or Tunable White to complete any commercial installation.
- 1-step static white, 2-step warm dim and tunable white
- Solite Soft Focus Lens plus Diffuser Standard
- Tool-Free Aiming/Locking: 0-40° Tilt, 361° Rotation
- Patented High/Low Lamp Positioning
- Standard Triac/ELV Dimming Down to 1%
- Lutron/eldoLED options
Click for Adjustable Downlight Finish Options
Click for Adjustable Downlight Housings Options
Click for Adjustable Downlight Trim Options
Fixed Downlight
Element 4" LED PRO Fixed Downlight
Click for Fixed Downlight Spec Sheet
The Element 4" Pro Series Fixed downlight introduces a budget-friendly, specification-grade downlight with wide-angle distribution for commercial applications. Engineered with a precision diffuser and Solite soft focus lens that eliminates hot spots, direct visibility into the housing, and delivers a clean aperture and ceiling aesthetic. The Element 4" Pro Series is offered in a variety of options, including output, beam spreads and the choice of Static White, Warm Dim or Tunable White to meet any commercial requirements.
- Budget-Friendly Solution for Commercial Spaces
- High-Output and Wide-Angle Beam Spreads Engineered for Large Spaces
- 1-Step Standard
- Standard Triac/ELV Dimming Down to 1%
- Lutron/eldoLED Options
Click for Fixed Downlight Finish Options
Click for Fixed Downlight Housings Options
Click for Fixed Downlight Trim & Finish Options
Click for Fixed Downlight Trim Options
Wall Wash
Element 4" LED PRO Wall Wash
Click for Wall Wash Spec Sheet
The Element 4" Pro Series Wall Wash sets a new standard for best-in-class performance. Creating a beautifully uniform high output flood of light without scalloping or hot spots. With even illumination from top to bottom of the wall, the Element 4" Pro Series Wall Wash complements the Element 4" Pro Series Fixed and Adjustable downlights for any commercial space and is available in a variety of options, including output, and the choice of Static White, Warm Dim or Tunable White.
- Luminit Tuning Film, Two Directions
- Even Vertical and Horizontal Illumination of Wall
- High Efficacy Output: >76 Lumens per Watt (Static White)
- 1-step static white, 2-step warm dim and tunable white
- Lutron/eldoLED options
Click for Wall Wash Finish Options
Click for Wall Wash Housings Options
Click for Wall Wash Trim Options
